Blue Diamond® Backhoe Attachment Supply

Original price was: $3,873.00.Current price is: $299.99.

SKU: US-8211829063854 Categories: , Tags: ,

Description

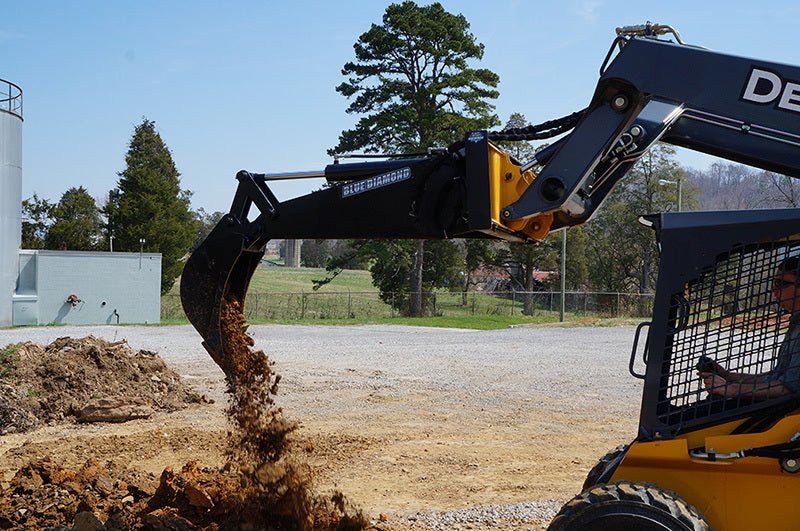

Blue Diamond® Backhoe Attachment

The Blue Diamond® Backhoe attachment is a quick and easy way to dig trenches using a skid steer.

This powerful unit uses the biggest cylinder in the industry and the largest bucket capacity. The linkage geometry gives exceptional bucket rotation and breakout force. When the bucket is fully extended, the overall length is 8′ and can dig a 6′ depth. This powerful attachment will outperform other backhoes both in production and strength. The side pin #230 cast teeth are replaceable, and the bucket options range from a 9″ width to a 24″ width.

Features

  • 3 1/2″ bore, 20″ stroke cylinder
  • Linkage between cylinder and bucket
  • Includes flat face couplers
  • Bucket sizes comes in 9″, 12″, 18″, and 24″
  • Large capacity bucket
  • Heavy duty cast replaceable teeth
  • Grease fittings on all pivot points
  • Quick off and on machine
  • No specific machine requirements
  • Easy to operate
  • Requires no electrical hookups
BACKHOE MANUAL

BACKHOE SPEC SHEET

PART NUMBER MODEL WEIGHT
130005 Backhoe, Hyd (No Bucket) 391 lbs.
130009 8″ Backhoe Bucket 103 lbs.
130010 9″ Backhoe Bucket 103 lbs.
130015 12″ Backhoe Bucket 139 lbs.
130020 18″ Backhoe Bucket 169 lbs.
130025 24″ Backhoe Bucket 202 lbs.
130027 30″ Backhoe Bucket 202 lbs.

Additional information

Model

8" Backhoe Bucket and Hydraulic Attachment, 9" Backhoe Bucket and Hydraulic Attachment, 12" Backhoe Bucket and Hydraulic Attachment, 18" Backhoe Bucket and Hydraulic Attachment, 24" Backhoe Bucket and Hydraulic Attachment, 30" Backhoe Bucket and Hydraulic Attachment
