Sale!

E-1440VS With ACU-RITE 303 DRO With Taper Attachment and Collet Closer Online

Original price was: $27,814.38.Current price is: $299.99.

SKU: US-7763894141102 Categories: , Tags: ,

Description

E-1440VS With ACU-RITE 303 DRO With Taper Attachment and Collet Closer

Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs

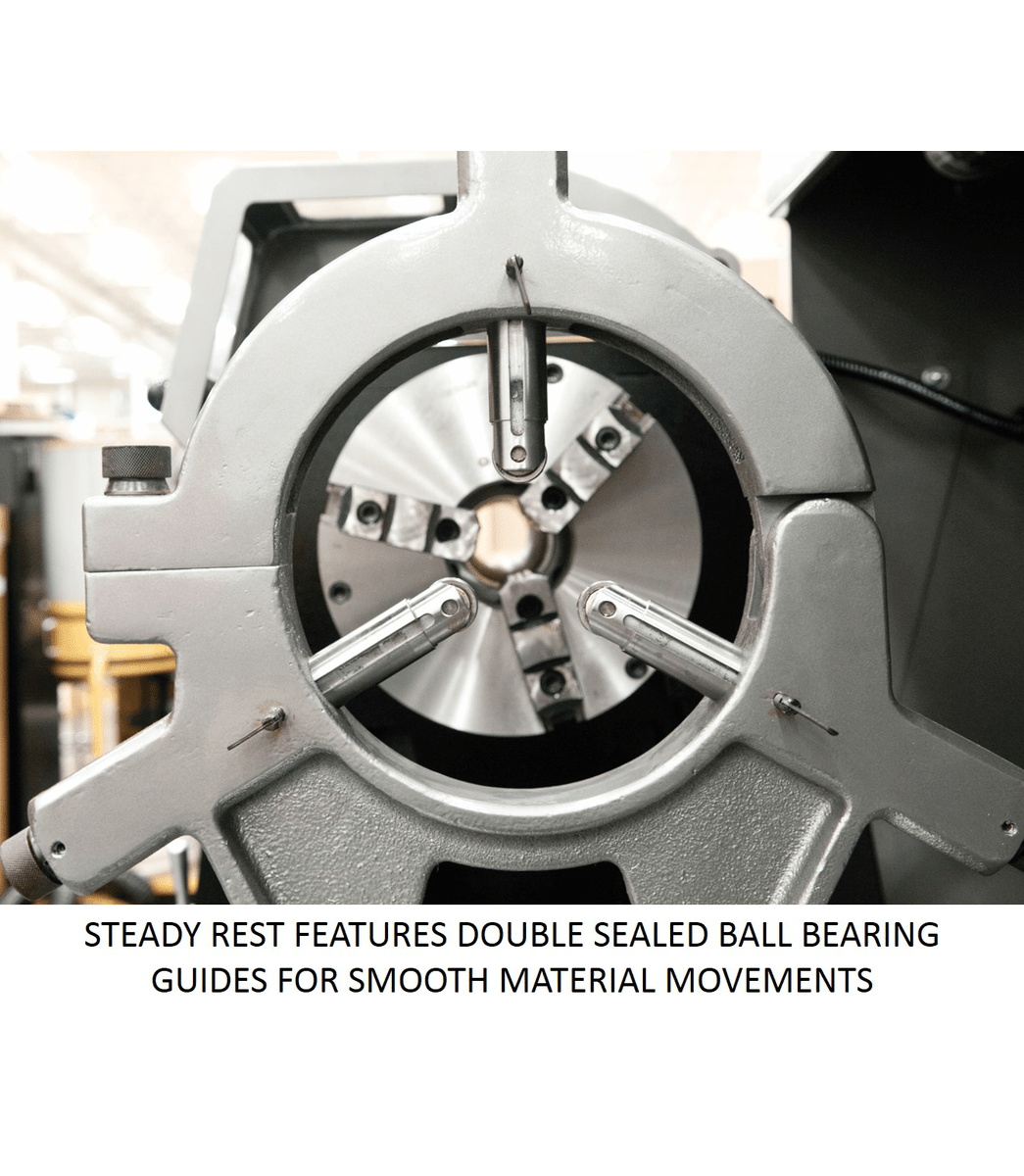

Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

More Information
Stock Number 892464
Amperage Draw @ 230V 3Ph 9
Compound Slide Travel (In.) 4
Cross Slide Travel (In.) 7
Drive EVS
Length of Gap (In.) 9
Motor (HP) 3 HP, 230V, 3Ph
Number of Inch Threads 40.0000
Number of Longitudinal and Cross Feed Rates 80
Number of Metric Threads 22.0000
Overall Dimensions (L x W x H) (In.) 77 x 30 x 58
Prop 65 Cancer and Reproductive Harm
Range of Cross Feeds (IPR) 0.0003 – 0.01
Range of Inch Threads (TPI) 4 – 112
Range of Longitudinal Feeds (IPR) 0.0012 – 0.0294
Range of Metric Threads 0.45 – 7.5
Range of Spindle Speeds (RPM) 0 – 2,200
Size 14 x 40
Spindle Bore (In.) 1-1/2
Spindle Mount D1-4
Spindle Taper with Sleeve MT-5
Steady Rest Capacity (In.) 1/4 – 2-3/4
Style (Type) ELITE EVS
Swing Over Bed (In.) 14
Swing Over Cross Slide (In.) 8-5/8
Swing Through Gap (In.) 20
Tailstock Spindle Travel (In.) 4-3/4
Taper in Tailstock Spindle MT-3
Weight (Lbs.) 1653
Width of Bed (In.) 8-1/2
