Lift-and-Dump Hydraulic Drum Dumpers on Sale

Original price was: $10,742.93.Current price is: $299.99.

SKU: US-7452001337518 Categories: , Tag:

Description

Lift-and-Dump Hydraulic Drum Dumpers

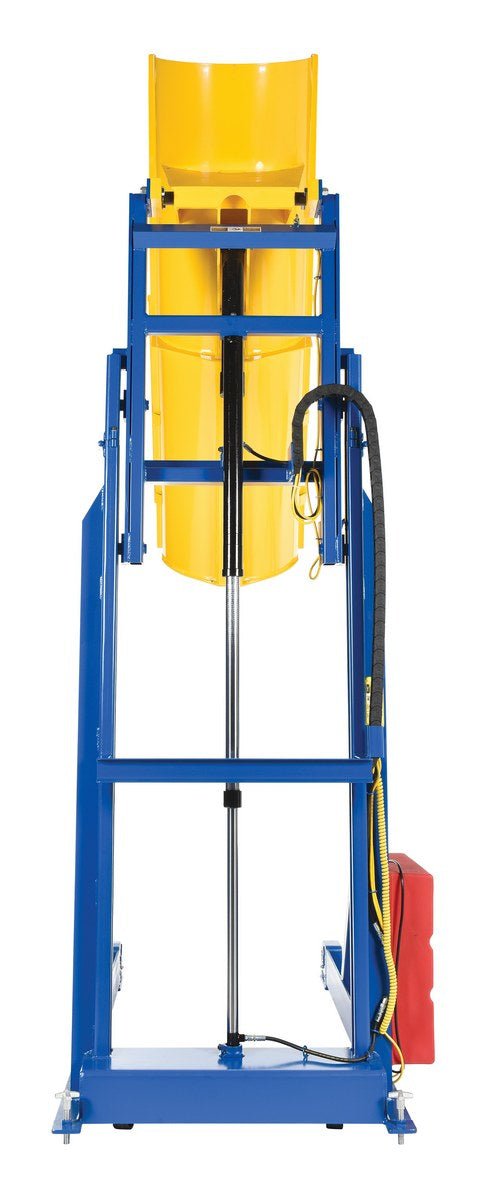

The Vestil Lift-and-Dump Hydraulic Drum Dumper is what you need to dump drums at variable heights.

The HLD works similarly to the HDD but includes a lift cylinder that allows you to dump at various heights. This hydraulic drum lifter features a (4) push button pendant which allows the operator full independent control of both lift height and the dump angle. Standard 460V 3-phase and 12V DC powered available.

All measurements on this drum lifter and dumper are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights of this drum dumper equipment.
Lift-and-Dump Hydraulic Drum Dumpers
Model Image PDF Dump Height (Min/Max) Rotation
Height		 Level Height Capacity
(lbs)		 Frame
(WxL)		 Wt.(lbs)
Portable Lift-and-Dump Hydraulic Drum Dumpers (40 Degree Dump Angle)
HLD-94-10-P 48″/94″ 163″ 87-3/4″ 1,000 51″x75-3/8″ 1372
HLD-116-10-P 60″/116″ 194″ 99-3/4″ 1,000 51″x82-3/8″ 1460
HLD-94-15-P 48″/94″ 163″ 87-3/4″ 1,500 51″x75-3/8″ 1392
HLD-116-15-P 60″/116″ 194″ 99-3/4″ 1,500 51″x82-3/8″ 1525
Stationary Lift-and-Dump Hydraulic Drum Dumpers (45 Degree Dump Angle)
HLD-94-10-S 48″/94″ 163″ 85-7/8″ 1,000 51″x65-1/2″ 1341
HLD-116-10-S 60″/116″ 194″ 97-7/8″ 1,000 51″x72-1/2″ 1422
HLD-94-15-S 48″/94″ 163″ 85-7/8″ 1,500 51″x65-1/2″ 1454
HLD-116-15-S 60″/116″ 194″ 97-7/8″ 1,500 51″x72-1/2″ 1466
DC Powered Portable Lift-and-Dump Hydraulic Drum Dumpers (40 Degree Dump Angle)
HLD-94-10-P-DC 48″/94″ 163″ 87-3/4″ 1,000 51″x75-3/8″ 1432
HLD-116-10-P-DC 60″/116″ 194″ 99-3/4″ 1,000 51″x82-3/8″ 1526
HLD-94-15-P-DC 48″/94″ 163″ 87-3/4″ 1,500 51″x75-3/8″ 1452
HLD-116-15-P-DC 60″/116″ 194″ 99-3/4″ 1,500 51″x82-3/8″ 1585
Stationary Lift-and-Dump Hydraulic Drum Dumpers (45 Degree Dump Angle)
HLD-94-10-S-DC – 48″/94″ 163″ 87-7/8″ 1,000 51″x65-1/2″ 1401
HLD-116-10-S-DC – 60″/116″ 194″ 97-7/8″ 1,000 51″x72-1/2″ 1582
HLD-94-15-S-DC – 48″/94″ 163″ 85-7/8″ 1,500 51″x65-1/2″ 1514
HLD-116-15-S-DC – 60″/116″ 194″ 97-7/8″ 1,500 51″x72-1/2″ 1526

KEY: = Approval Drawing — = Warranty — = Testing Certificate

Additional information

Options

Portable Lift-and-Dump, Stationary Lift-and-Dump, DC Powered Portable Lift, Stationary Lift-and-Dump with DC Power
Capacity

1000, 1500
