Description

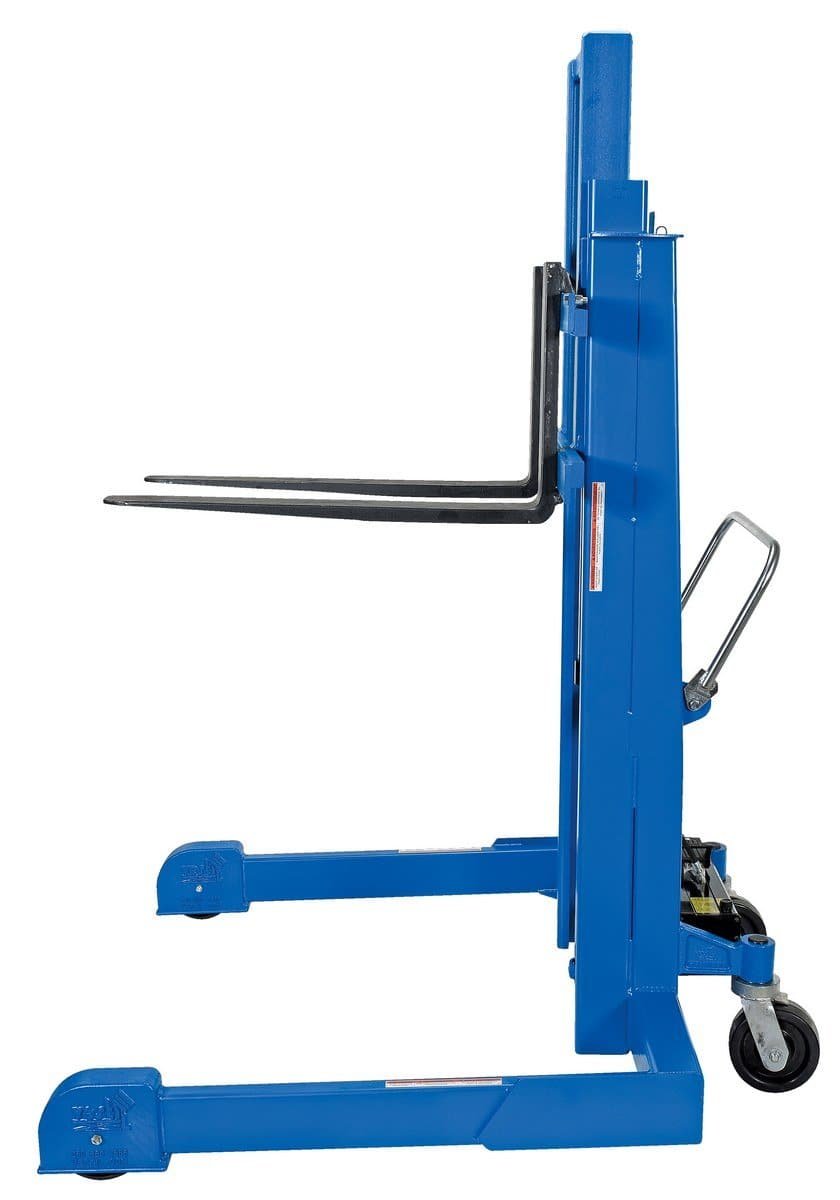

Pallet Master/Servers

The Pallet Master/Servers, are designed to be used when a fork truck is not available.

The Pallet Master/Servers can handle pallets and skids both with and without an understructure. Capacity rated is at 18″ regardless of fork length. The forks are 36″ long for handling a wide variety of pallet sizes. Move the unit around easily on 8″ x 3″ (8″ x 2″ locking standard on LL-PMPS) phenolic swivel rear casters Floor lock standard on PMPS series. Handle height is 36″. Outriggers are adjustable on series LL-PMPS, inside straddle width is adjustable between 34″ to 50-1/2″.

PTDS-E — Power Traction Drive option reduce worker fatigue and injury. An alternative to costly fork trucks, the PTDS-E includes combination throttle / direction controller and auto reverse emergency “belly” switch. This state of the art option allows a single operator to safely and easily move products. Maximum speed is 2.5 m.p.h. 24V DC system.

Three Power Options to choose from:

• Suffix-AC is 115V 1 phase power with a push-button hand control
• Suffix-DC includes one (1) 12V battery, push-button hand control, an on-board charger and battery charege indicator gauge.
• Suffix-AIR feautres reciprocating air/oil power with a heel/toe foot treadle control/

KEY: = Approval Drawing — = Warranty — = Testing Certificate
