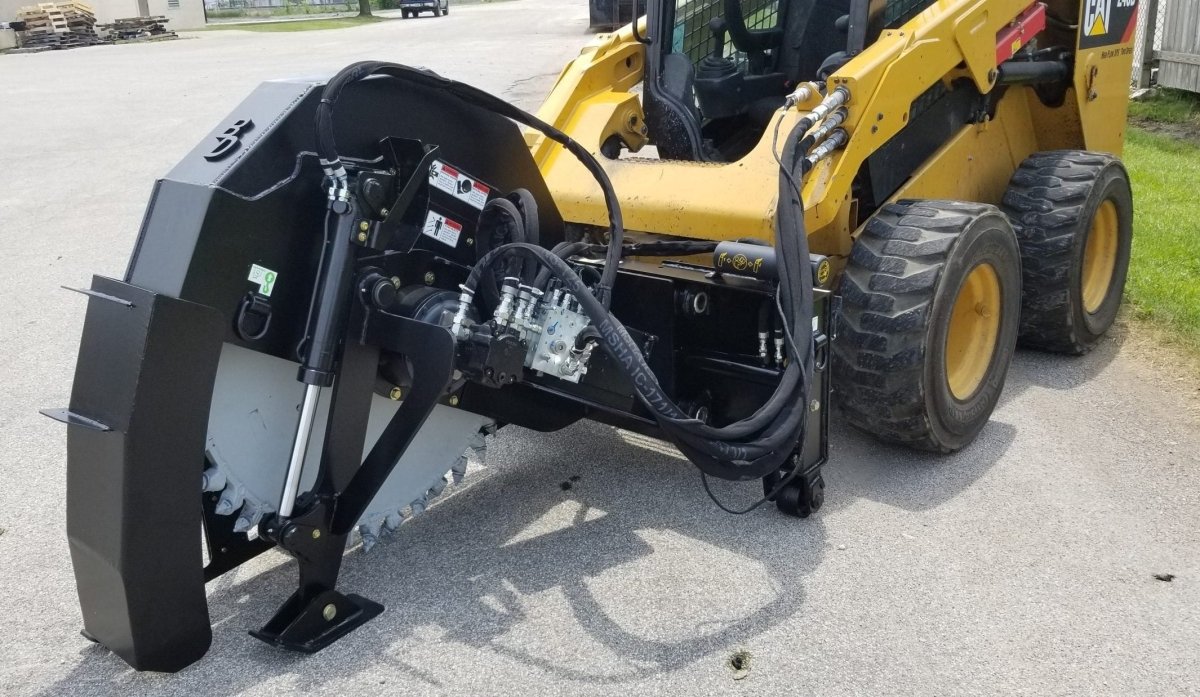

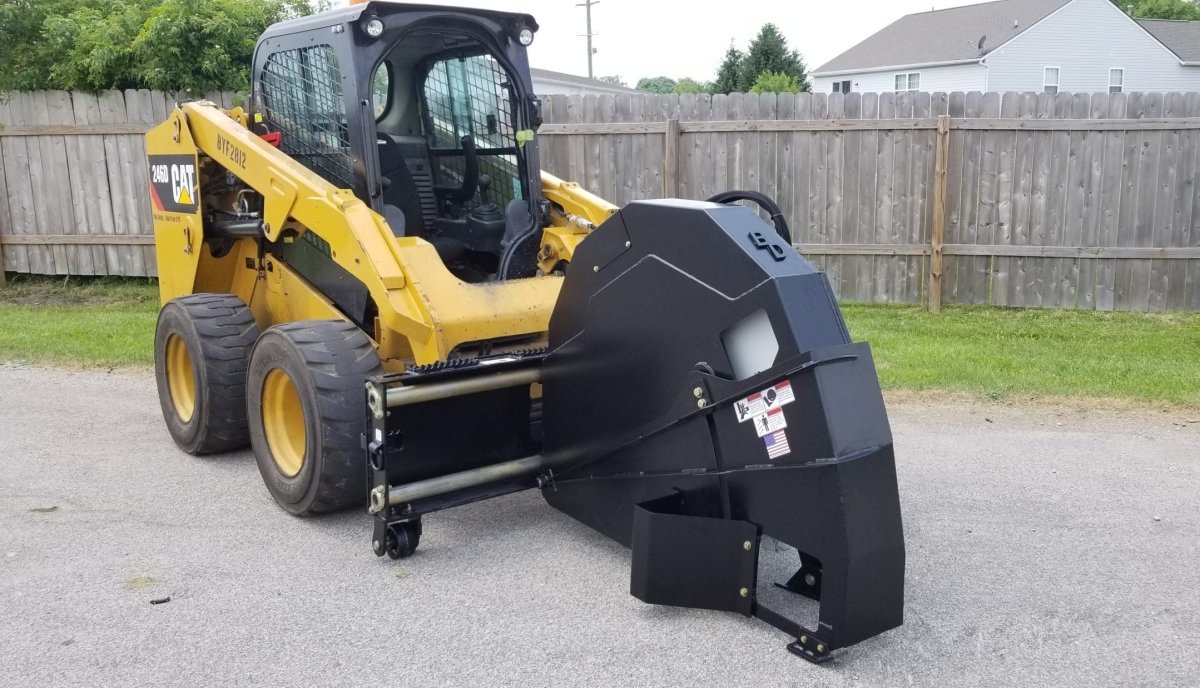

Skid Steer Road Saw

Blue Diamond® high flow road saws offer high rates of production at a substantially lower cost than smaller, self-propelled wheel saws.

Our high flow skid steer road saws are offered in cutting depths up to 10- or 18-inches! All feature planetary reduction drives, which efficiently provide maximum cutting torque under load. All saws utilize a ground-engaging frame, which provides accurate depth of cut control. This means the frame is in contact with the ground during the cutting operation, and the cutting wheel moves up and down within this frame, giving the operator the ability to maintain control of the cut.

Features

Hydraulic Cutting Depth: 10in Model = 0 to 10 inches; 18in Model = 0 to 18 inches
Hydraulic Sideshift: 0 to 26 inches
Available Cutting Wheels: 10in Model = 2.5 & 4.5 inch, 18in Model = 3.0, 4.5 & 6.0- inch
Requires High Flow Hydraulics at a minimum of 30 GPM at 2,500 PSI

PART NUMBER	MODEL	WEIGHT
161000-HP	10″ Cut Depth, Road Saw (Req Cutting Wheel)	1,200 lbs.
161005-HP	18″ Cut Depth, Road Saw (Req Cutting Wheel)	2,000 lbs.
161505	10″ Depth X 2.5″W Cutting Wheel	127 lbs.
161510	10″ Depth X 4.5″W Cutting Wheel	165 lbs.
161530	18″ Depth X 3″W Cutting Wheel	372 lbs.
161533	18″ Depth X 4.5″W Cutting Wheel	426 lbs.
161535	18″ Depth X 6″W Cutting Wheel	481 lbs.

MODEL	MIN GPM/PSI	CUT WIDTH	CUT DEPTH	SIDESHIFT	MAX TORQUE	OVERALL HEIGHT	OVERALL WIDTH
161000-HP	27/2750	2.5″, 4.5″	0″ – 10″	26″	–	–	66″
161005-HP	32/3000	3″, 4.5″, 6″	0″ – 18″	26″	4500 lb./ft	60″	66″

ROAD SAW SPEC SHEET

Additional information

Size	Road Saw 10" Cut Depth (cutting wheel sold separately), Road Saw – 18" Cut Depth (cutting wheel sold separately), Cutting Wheel 10" Depth X 2.5"W (no saw), Cutting Wheel 10" Depth X 4.5"W (no saw), Cutting Wheel 18" Depth X 3"W (no saw), Cutting Wheel 18" Depth X 4.5"W (no saw), Cutting Wheel 18" Depth X 6"Wl (no saw)
