Significantly increased cutting performance thanks to innovative Tyrolit P2 Technology with permanent magnetic high cycle motor that runs at lower RPMs and allows for direct drive (no gear box)
Get higher productivity and reduced service costs due to the maintenance-friendly design
Optimize your cutting with the new automatic load sensing feed/travel mechanism and low RPM
Lightweight and versatile
The High Cycle Converter Can Also be Used to Power the WCE14 Wire Saw
WSE1217 Specifications:
BLADE
Maximum cutting depth:
22.5″
Maximum blade capacity:
54″
Maximum starter blade size:
32″
Blade mount:
Quick-release flange
DESIGN
Infinitely adjustable swivel arm rotates 360°
2 carrying handles with locking function
MOTOR
Water cooled high frequency motor without gearbox
Output at 32-amp 17 kW, 22.79 horsepower
POWER PACK/INVERTER INPUT
Voltage:
460 Volt
Frequency:
50Hz/60Hz
Output Frequency:
400 Hz
WEIGHT
Wall Saw WSE1217 including feed motors-without main drive blade motor:
56 lbs.
Electric main blade motor only:
36 lbs.
MINIMUM GENERATOR SIZE REQUIREMENT:
30kW
Electric Power Pack and Radio Remote Control
Part # 3401431, Cat # 42996 $35,255
(Included with WSE1217 complete system)
**Not Included with package: Part# 340255, Part# 3402551**
Additional information

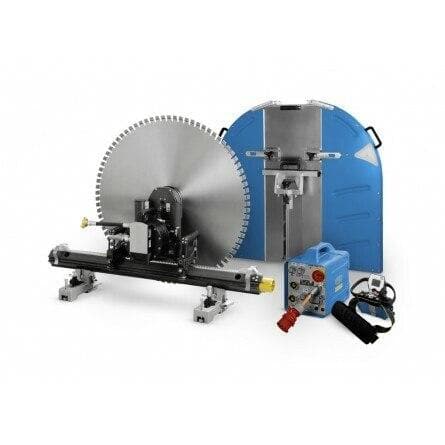

WSE1217 Wall Saw System
WSE1217 Wall Saw System, Flat Aluminum For for Hydrostress Track, Aluminum/Steel Track 43" ( G Style), Aluminum/Steel Track 86" ( G Style), Rotating Track Foot, 32" Blade Guard (3 Pieces), 40" Blade Guard (3 Pieces), 48" Blade Guard (3 Pieces)
